AC-SERIES
AC-8
Material
- -aluminum profile
- -aluminum plate
- -aluminum blocks
- -stainless steel 304 screws 6mm
- -EPDM rubber ring
- -galvanized iron mesh
Accessories
- -lifting keys

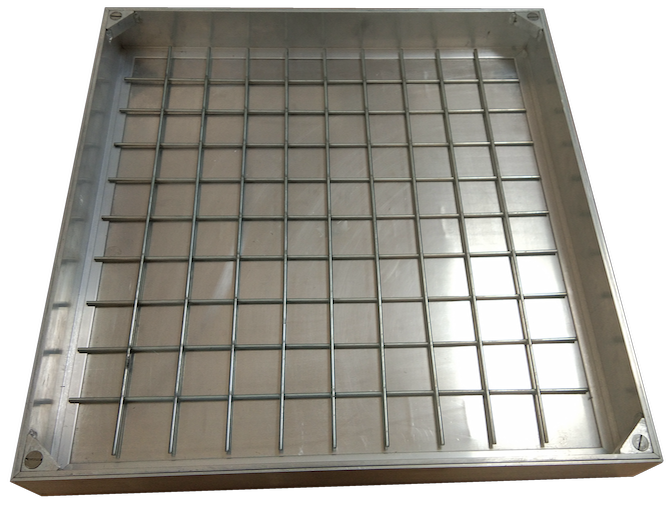

- -galvanized iron mesh to fit the concrete in
- -lifting keys
- -rubber installed between inside and outside covers
- -lifting keys
- - “triangle ruler” measure to support cutting the tiles or other filling material to size
- -lifting keys
- -carton corner protectors
- -lifting keys

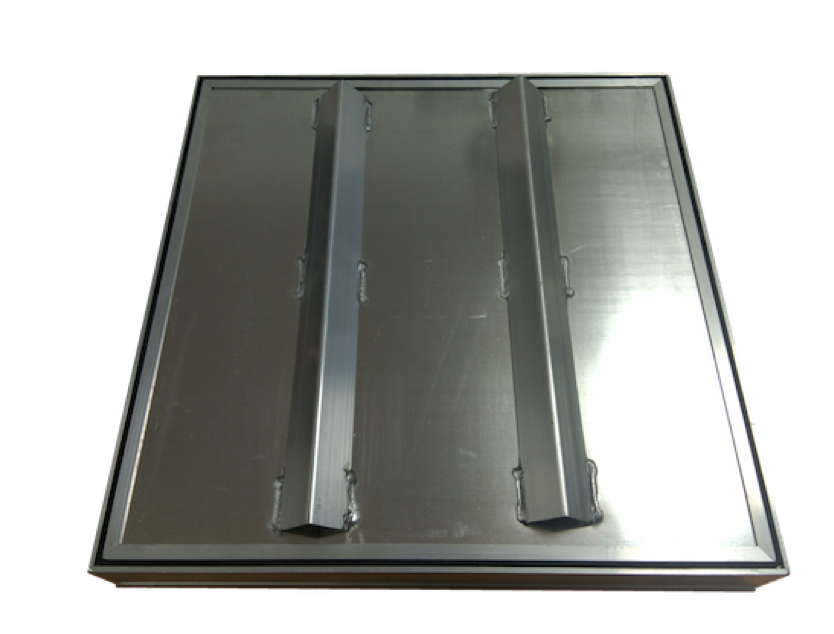

- -Reinforcements from 500x500, 600x600. 700x700, 800x800
Customer-made
On request

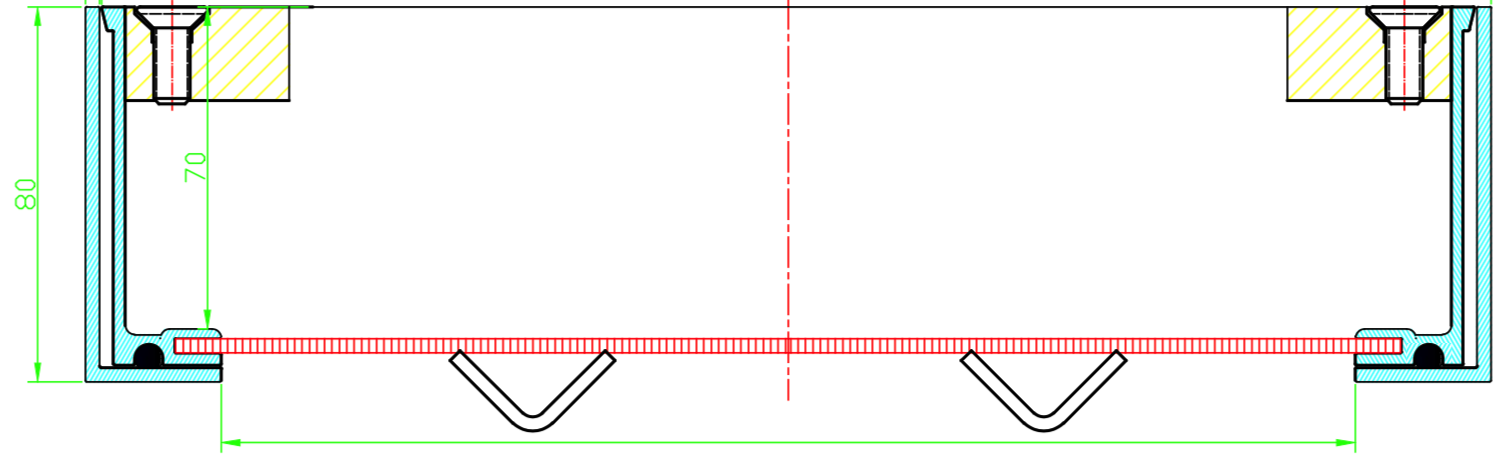

Structure indication
Standard dimensions info
AC-8 | Clear Opening (mm) | Total height (mm) | Weight (KG) | Load Class |
300x300 | 240x240 | 80 | 3.06 | 40KN |
400x400 | 340x340 | 80 | 4.59 | 40KN |
500x500 | 440x440 | 80 | 7.09 | 40KN |
600x600 | 540x540 | 80 | 9.31 | 40KN |
700x700 | 640x640 | 80 | 12.21 | 20KN |
800x800 | 740x740 | 80 | 15.07 | 20KN |
900x900 | 840x840 | 80 | 18.22 | 20KN |
1000x1000 | 940x940 | 80 | 22.24 | 20KN |
*Loading test made at the condition of filling the concreate to the top level.
