Aluminum Drain

Model AD-2

Line drainage system is aiming for outside use, e.g. garden, terrace, parking lane etc. It’s special made by aluminum profile with many advantages, compared with traditional galvanized steel version, e.g. no rusts, no welds, no sharp edges etc. We supply different applications to comprise a comprehensive package to all customers.




  • Material
  • -aluminum profile 6063
  • Installation Height
  • -75mm
  • Stone Height
  • -60mm

Surface treatment
  • -Most common is Nature/ Plain surface
  • -Can also supply Anodization treatment

Customer-made Length
  • -Most common length is 1000mm, 1200mm
  • -Max 2500mm length

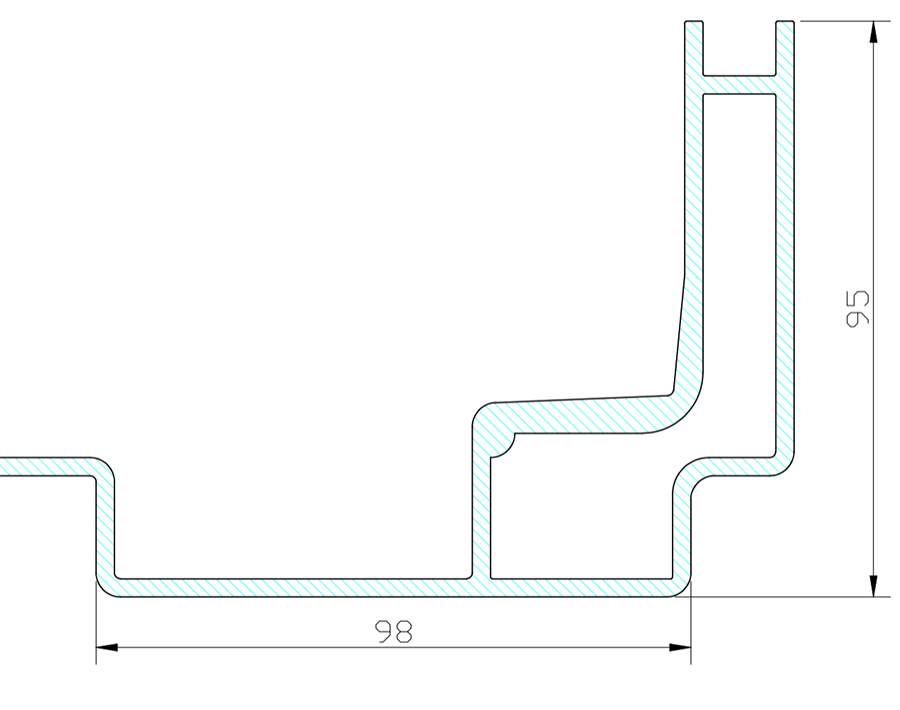

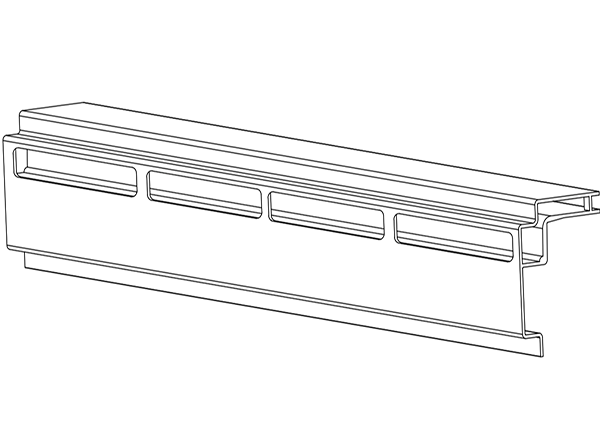

Structure indication




Standard dimension info
Alum.Drain length (mm) Height (mm) Weight (KG) Load Class
AD-2 1000 75 3.05 B125

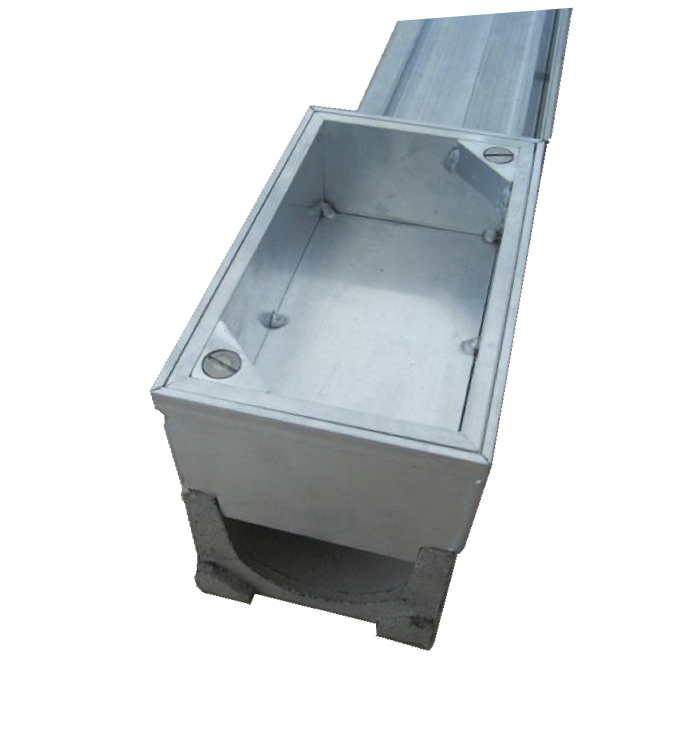

AD-2-Inspection cover 132x220x95 75 1.2 B125

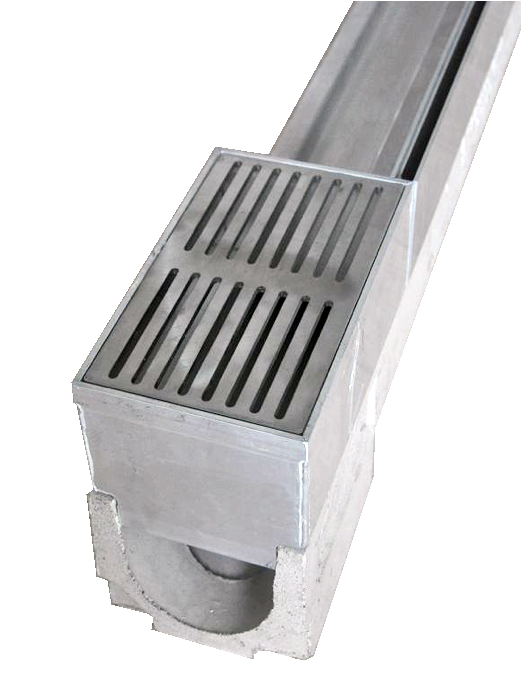

AD-2-Grating cover 132x220x95 75 1.42 B125

Application



Packing
  • AD-2, each 50 pcs in one Carton pallet.
  • AD-2-Inspection cover, according to customer’s need, can be packed one by one in carton box with customer’s printing.
