Aluminum Drain

Model AD-1

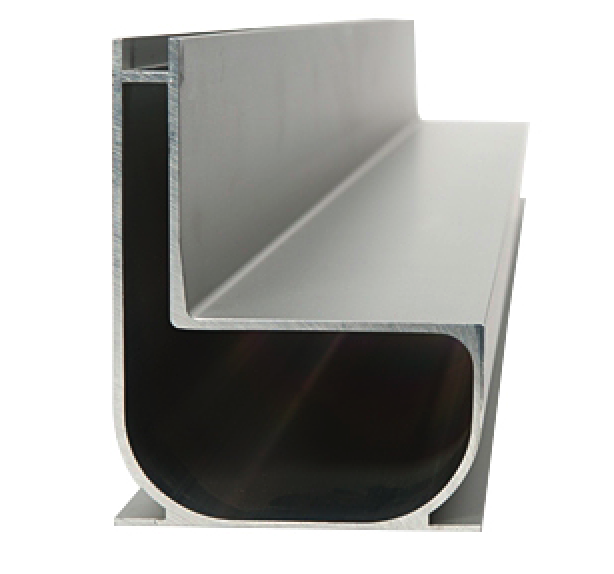

Integrated version ensures that the most functional and elegant look to all purposes, such as swimming pool and garden. Its sustainable material made of anodized aluminum profile, and it’s available in various lengths. This unique combination leads to assembly easier and no longer depend on traditional channels in plastic or polymer channels.

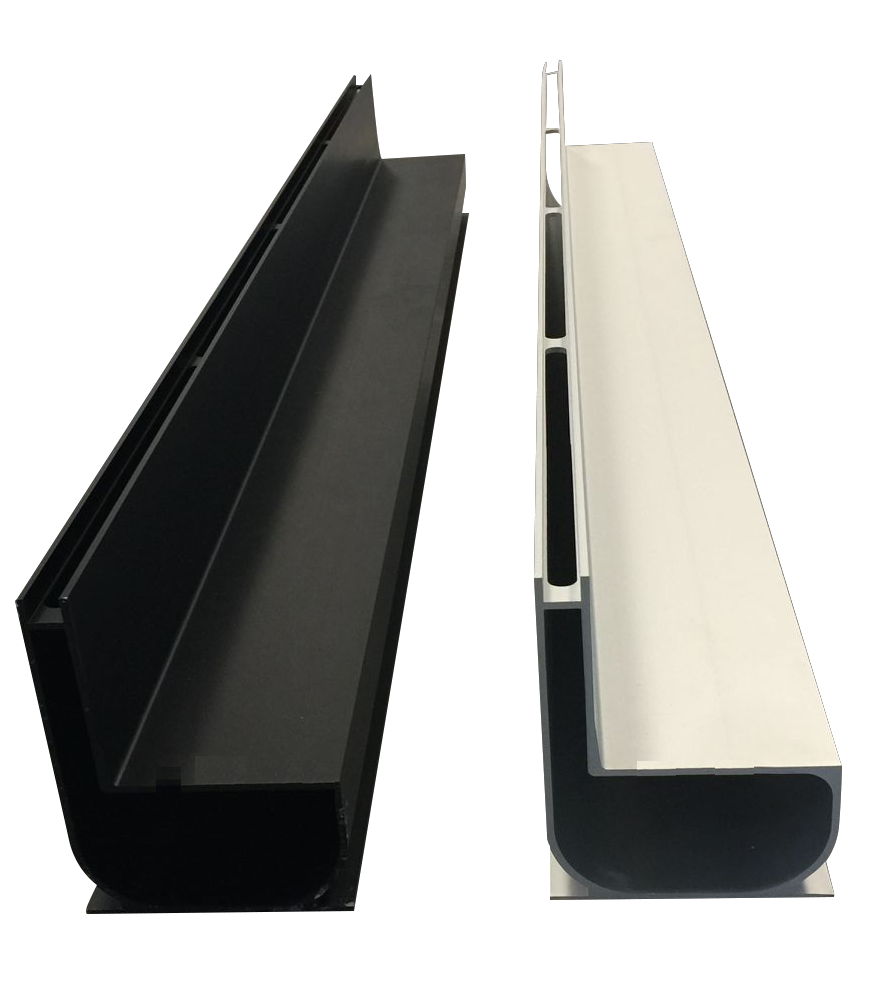

We supplied both Black Anodization and Natural Anodization surface look




  • Material
  • -aluminum profile
  • Top channel width
  • -12mm
  • Stone Height
  • -60mm

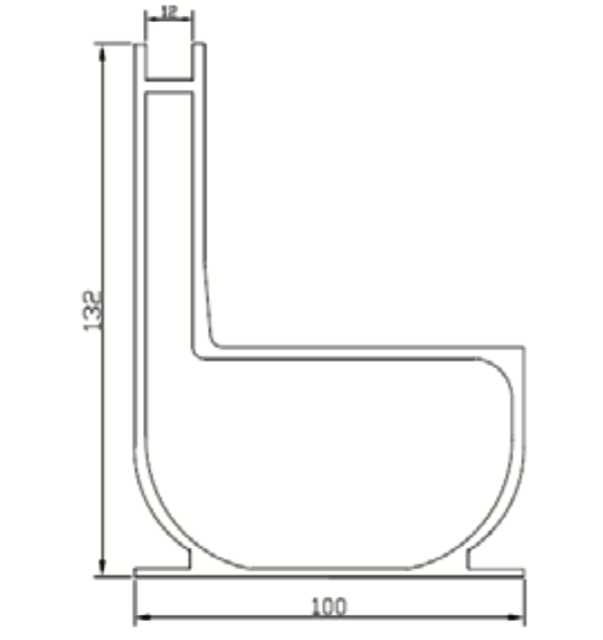

Dimension indication

  length (mm) Height (mm) Weight (KG) Load Class
AD-1-1 1000 132 3.52 125KN
AD-1-1.2 1200 132 4.22 125KN
AD-1-2.5 2500 132 8.80 125KN


Surface treatment

-Anodization treatment


Customer-made Length
  • -Common length is 1000mm, 1200mm
  • -Other lengths are available, e.g. 2500mm

Accessories
  • -Left End cap
  • -Right End cap
  • -Connection part
  • -Connection part with outlet
  • -Inspection cover

Packing
  • AD-1, each 50 pcs in one Carton pallet.
  • AD-1-Inspection cover, according to customer’s need, can be packed one by one in carton box with customer’s printing.
